Technical information

Heavy Super Rack

Technical information

Technical information

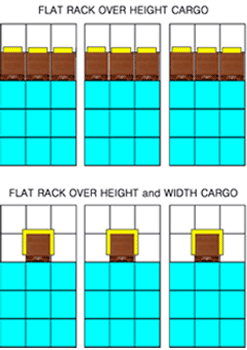

■ It has to be stowed at top tier in the hold. ■ It needs many dead spaces. ■ Can not stack up other containers on top of it. ■ Limited quantities are acceptable depends on the top tier spaces. ■ It is very difficult to transship.		■ It can be stowed at any places ■ It does not need many spaces ■ Can stack up other containers on top of it. ■ No limit of quantity as it is possible to stow at any places. ■ It is very easy to transship.

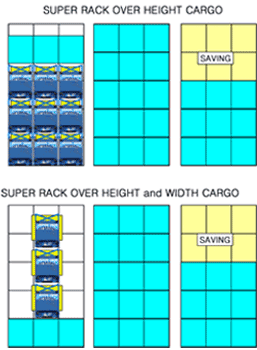

Super Rack		Super Rack

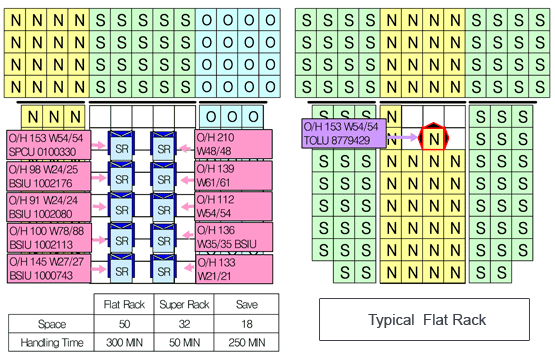

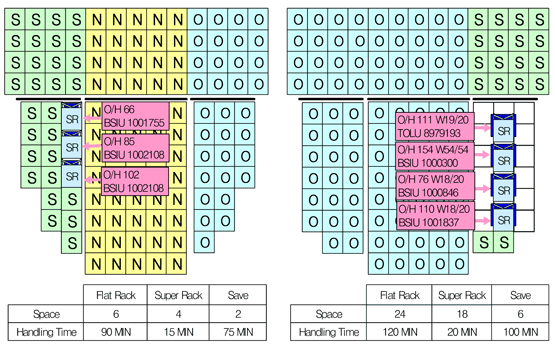

■ 4 over-height cargos in one row ■ It took just 20min. to load them ■ It saved 2 spaces		■ 10 over height and width cargos in two rows ■ It took just 50min. to load them ■ It saved 18 spaces

Super Rack		Super Rack

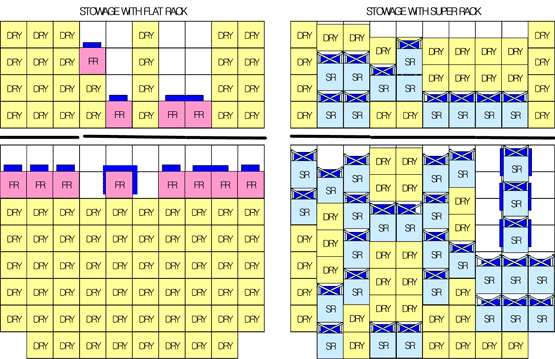

■ Over-height cargos on Super Rack stacking each other on deck		■ Break bulk cargos on Super Rack covered with dry containers on deck.



■ Can not carry many over-sized cargos. because of spaces, vessel delays, extra cost and so on.		■ Can carry many over-sized cargos. Without any problems of spaces, vessel delays, and extra cost.

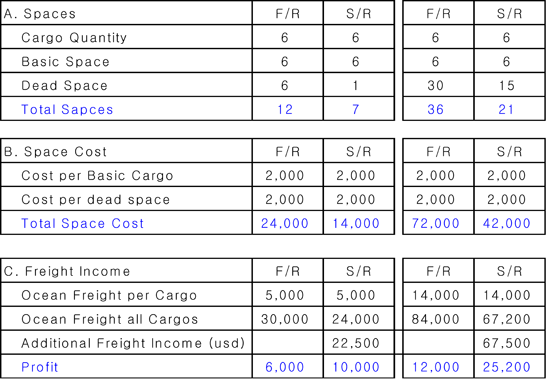

- It can make 40 ~ 45% additional income.

Based on 5,000 teu vessel in long range service.

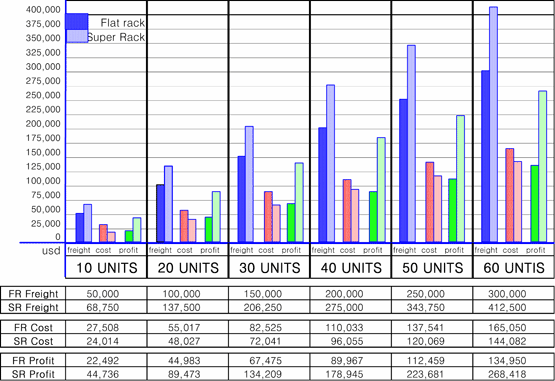

Summary of freight, cost and profit based on 5.000teu vessel in long range service.

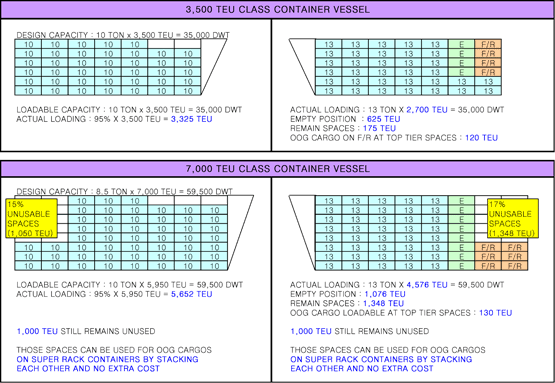

- It is possible to make use 15 ~ 17% of additional spaces.

West bound	East bound

V 4.0 - highcube

V 4.0 - highcube
V 3.4

V 3.4
V 4.0 - highcube

V 3.4
V 4.0 - highcube

V 4.0 - highcube

V 4.0 - highcube

Heavy Super Rack

V 4.0 - highcube

Swire

V 4.0 - highcube

V 4.0 - highcube

V 4.0 - highcube

---------------

Handling at Yard

Loading on Board

Demonstration at JAKARTA

Handling 200T Excavator at Singapore
